Electrical Safety Matting 6mm 11kV Tested, 450V Working (BS 921)
- Heavy Duty
- Non-slip surface
- Commercial Flooring
- Professional Grade
- Thickness
- 6mm6mm
- Use
- Indoor
- Width
- 91 cm, 1 m or 1.2 m wide, cut to length up to 10 m91 cm, 1 m or 1.2 m wide, cut to length up to 10 m
- Material
- Rubber
- Tested at 11kV, rated to 450V working (BS 921:1976)

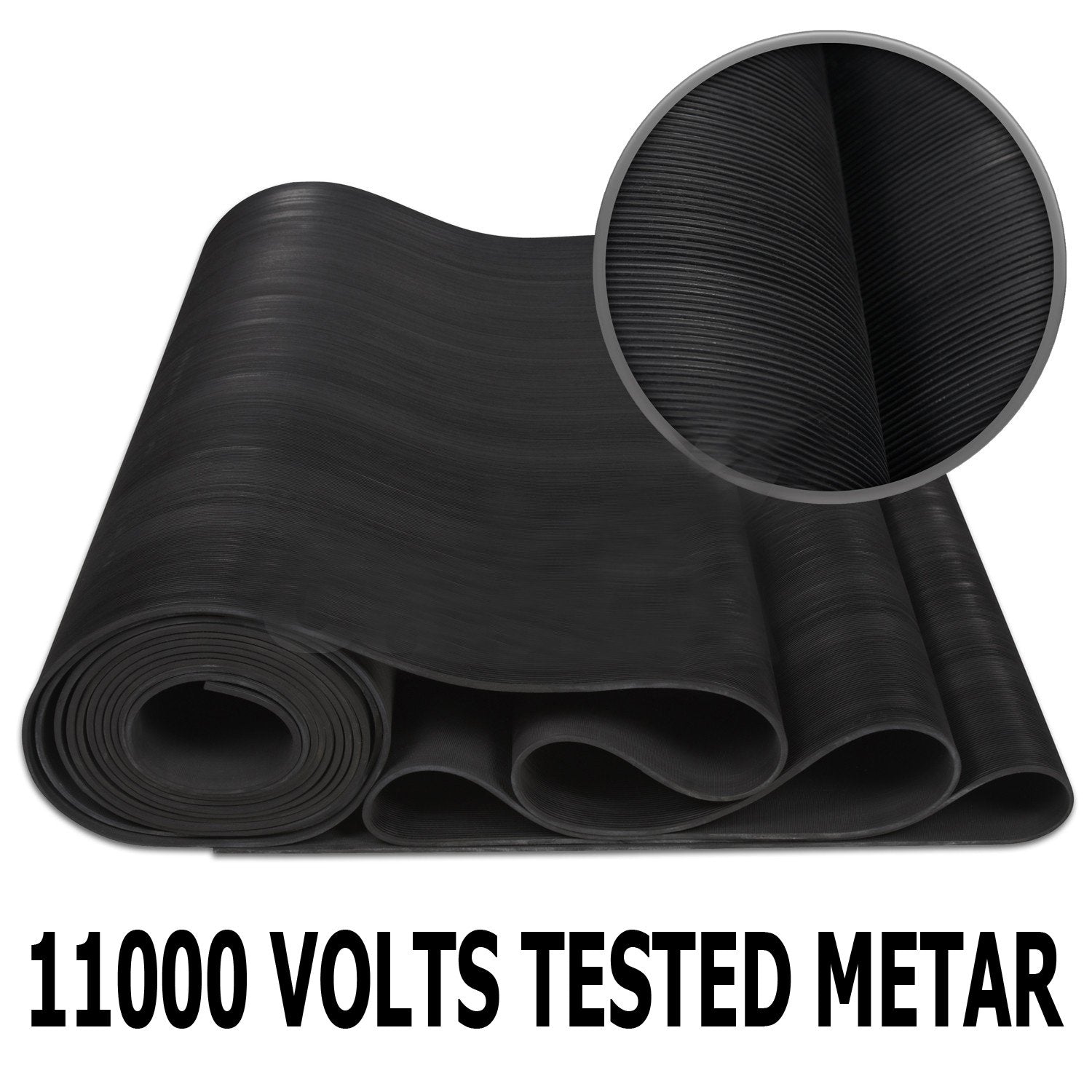

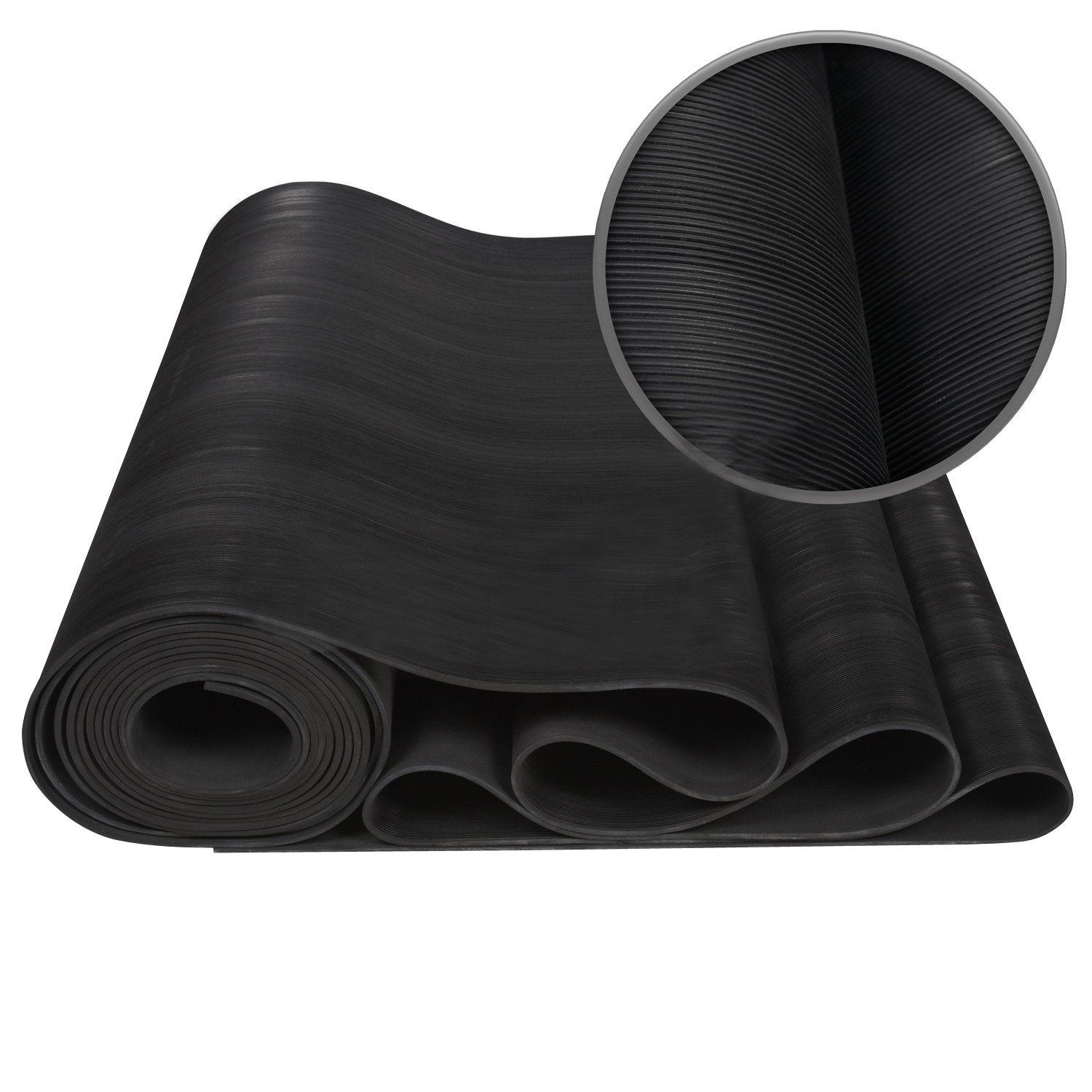

- 6mm black insulating rubber, approx. 9 kg per m²

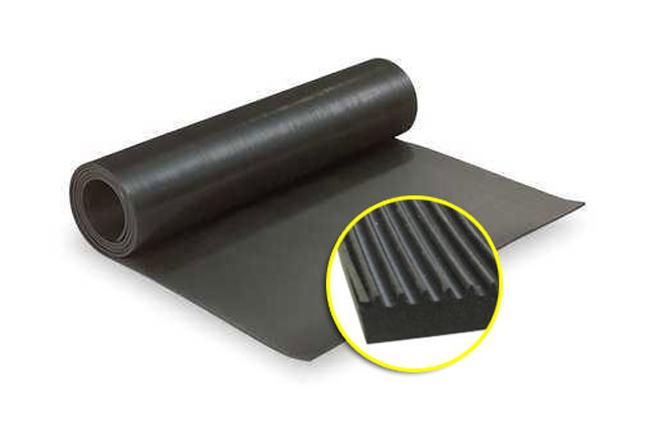

- Fine-ribbed top for secure footing
- BS 921 marking along the underside every metre
How much do I need?
Enter your floor size. We'll work out the best roll width, how many metres to order, the offcut and the total cost.
Options shown are for the thickness you've selected. Strips are cut from one continuous order; joins run along the length.
Description
Switchboard matting puts a layer of insulating rubber between the operator and the floor while they work on or near live low-voltage equipment. Our 6mm black matting is tested at 11kV and rated for a maximum working voltage of 450V (BS 921:1976). A closely ribbed top keeps footing secure in front of switchboards, control panels and distribution boards, and BS 921 marking repeats along the underside, so every cut length can be identified at inspection.
Why choose this matting
Tested at 11kV
Rated for work up to 450V, it adds a protective layer for anyone operating low-voltage panels and switchgear.
Secure footing
Fine lengthwise ribs grip boots on the top face while hands are busy at the panel. The textured underside lies flat on the floor.
Marked every metre
BS 921 marking runs along the underside at one-metre spacing, so even a short offcut can be identified for audits and safety checks.
Cut to length
Sold per linear metre in 0.91m, 1m and 1.2m widths, from 1m up to a full 10m roll, so you can cover the full length in front of a switchboard in one piece.
Ideal for
- Switchboards
- Control panels
- Distribution boards
- Plant & boiler rooms
- Substations
- Server rooms
- Electrical test benches
Specifications
| Standard | BS 921:1976 |
|---|---|
| Test voltage | 11 kV |
| Maximum working voltage | 450 V |
| Thickness | 6 mm |
| Weight | Approx. 9 kg per m² |
| Widths | 0.91 m, 1 m or 1.2 m |
| Supplied | Cut to length from 1 m to 10 m, or a full 10 m roll |
| Compound | Black insulating rubber, SBR and natural rubber blend |
| Top surface | Fine lengthwise ribs |
| Underside | Fabric-texture finish, BS 921 marking every metre |
| Hardness | 65–75 Shore A |
| Density | 1.5 g/cm³ |
| Tensile strength | Approx. 3.9 MPa |
| Elongation at break | 200% |
| Service temperature | −20°C to 70°C |
| Sold as | Price per linear metre |
Fitting & care
- Lay the matting along the full working area in front of the panel, so the operator never stands off the mat.
- Use one continuous length where you can; avoid gaps or overlaps at joins.
- Keep the surface clean and dry, and wipe with mild soapy water. Do not use solvents or oils.
- Inspect regularly for cuts, holes, embedded metal or damage, and replace any damaged section straight away.
FAQs
What voltage is this matting suitable for?
It is tested at 11kV and rated for a maximum working voltage of 450V (BS 921:1976). For equipment up to 1,000V, choose our Class 0 matting to IEC 61111. For high voltage switchgear such as 11kV or 33kV, choose our high voltage matting, Class 1 to 4.
How is the price worked out?
The price is per linear metre. Choose your width, then set the quantity to the number of metres you need, up to a full 10m roll.
Can I join two pieces together?
One continuous length is best for insulation. If you must join pieces, butt them tightly with no gaps, and make sure the operator always stands on the matting.
Is it available in other colours or a flame-retardant grade?
Yes. Coloured and flame-retardant, low-smoke grades can be supplied to order. Call us for lead times and pricing.
