Rubber Matting CO Rubber Flooring › Rolls
Checker Plate Rubber Matting 3mm or 4.5mm, 1.5m or 2m Wide, Cut to Length
- Thickness
- 3mm or 4.5mm3mm or 4.5mm
- Use
- Indoor
- Width
- 1.5 m or 2 m wide, cut to length up to 10 m1.5 m or 2 m wide, cut to length up to 10 m
- Material
- Rubber
- Raised diamond checker plate pattern for grip
- Premium low-odour rubber, REACH, RoHS and PAH compliant
- 3mm or 4.5mm thick
- 1.5m or 2m wide, priced per linear metre
How much do I need?
Enter your floor size. We'll work out the best roll width, how many metres to order, the offcut and the total cost.
Options shown are for the thickness you've selected. Strips are cut from one continuous order; joins run along the length.
Description

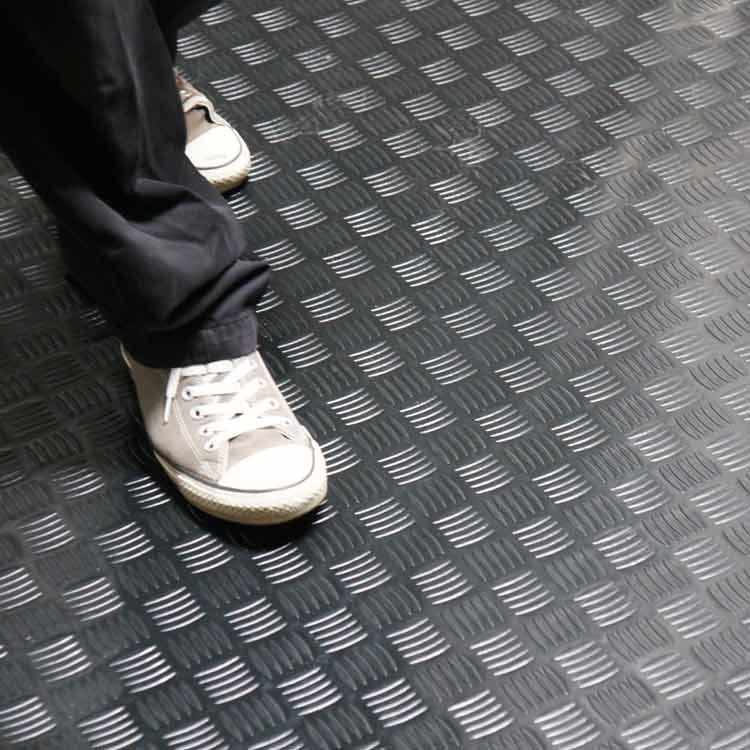

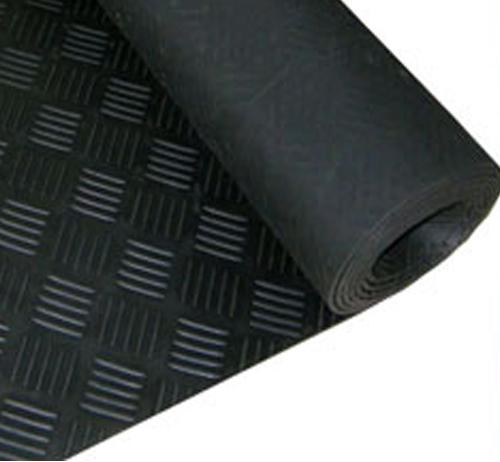

Checker plate rubber matting with a raised diamond bar pattern that grips boots, tyres and loads, and protects the floor underneath from oil, scuffs and dropped tools. It is a premium low-odour grade, REACH, RoHS and PAH compliant, so it does not fill a van or garage with the strong smell of cheaper recycled matting. Choose 3mm for vans, trailers and benches, or 4.5mm for a tougher, more cushioned garage or workshop floor.
Why choose this matting
Low odour
Made from a premium rubber compound that is PAH compliant, so it is low odour indoors and in enclosed vans.
Grip and protection
The raised diamond pattern gives grip underfoot and stops loads sliding, while the rubber shields the floor from oil, scratches and knocks.
Wide rolls
1.5m or 2m wide, so most van floors and single garage bays can be covered with fewer joins.
Cut to length
Sold per linear metre from 1m up to a full 10m roll, and easy to trim to shape with a sharp knife.
Ideal for
- Garage floors
- Van and pickup load floors
- Trailers and horseboxes
- Workshops and benches
- Sheds and outbuildings
- Home gyms
- Shop fronts and walkways
Specifications
| Pattern | Raised diamond bar (checker plate) |
|---|---|
| Thickness | 3 mm or 4.5 mm |
| Widths | 1.5 m (3 mm and 4.5 mm) or 2 m (3 mm) |
| Supplied | Cut to length from 1 m to 10 m, or a full 10 m roll |
| Weight | Approx. 4.5 kg per m² (3 mm), 6.75 kg per m² (4.5 mm) |
| Compound | Premium natural rubber and SBR blend, low odour |
| Compliance | REACH, RoHS and PAH compliant |
| Colour | Black (red, blue, green or grey to order) |
| Hardness | 65–75 Shore A |
| Density | 1.5 g/cm³ |
| Tensile strength | 3.4 MPa minimum (3 mm) |
| Elongation at break | 250% (3 mm) |
| Other grades to order | Oil-resistant nitrile, outdoor EPDM and fire-resistant versions |
| Sold as | Price per linear metre |
Fitting & care
- Unroll the matting and leave it flat at room temperature for 24 to 48 hours so it relaxes before fitting.
- Sweep the floor clean and dry. For a van, make a paper template of the load floor first.
- Mark out with chalk and cut along a straight edge with a sharp utility knife, taking several light passes.
- Clean with warm soapy water; avoid solvents and petrol on the standard grade.
FAQs
Does it smell?
It is a premium low-odour grade, PAH compliant, so it is much less smelly than cheap recycled matting. A light rubber smell when new fades quickly with ventilation.
3mm or 4.5mm?
3mm is light and flexible, ideal for vans, trailers and benches. 4.5mm is heavier and more cushioned, better for garage and workshop floors that take more wear.
Is it oil resistant?
The standard grade protects the floor from drips and spills but is not made for constant oil contact. An oil-resistant nitrile version is available to order; call us for details.
How is the price worked out?
The price is per linear metre. Choose your thickness and width, then set the quantity to the number of metres you need, up to a full 10m roll.
Can I get other colours?
Yes. Red, blue, green and grey can be made to order. Call us for pricing and lead time.
Specifications
| Product code | Rmco-3918 |
|---|---|
| Size | 1.5m Wide x 3mm Thick |
| Category | Rubber Flooring › Rolls |
| Sold as | Per linear metre |
| Weight | 14.99 lb |
| Brand | Rubber Matting CO |
Frequently bought together
Untick anything you don't need.
Bulk & trade order
Need several sizes at once? Add them all from one list (quantities in metres). For one size, use the options at the top of the page.
| Size | Per m² | Price | Stock | Metres | Line total |
|---|---|---|---|---|---|
| 1.5m Wide x 3mm Thick Rmco-3918 |
In stock |
|
— | ||
| 2m Wide x 3mm Thick Rmco-3919 |
In stock |
|
— | ||
| 1.5m Wide x 4.5mm Thick Rmco-3920 |
In stock |
|
— |
Delivery & returns
Dispatched from our UK warehouse within 24 hours. Shipping policy
Return unused items within 14 days. Returns policy
Switch prices between inc. and ex. VAT with the toggle by the price.
